Description
Technical Specificationstions

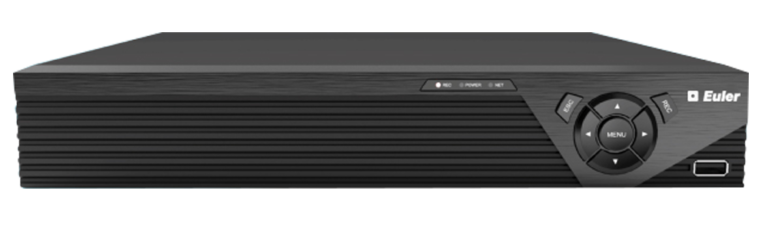

| UL-NVR1080P-4CH/2HDD | |
| System | |
| Operating System | Embedded LINUX |
| Main processor | Hi3535 |
| Video & Audio Input | |
| IP Camera Input | 4 channel |
| Bandwidth of Network Video | 64 Mbps |
| Resolution | 4*1080P/25fps; 4*720P/25fps; |
| Audio in | 1 channel |
| Audio out | 1 channel |
| Display | |
| Interface | 1.HDMI, 1 VGA |
| User interface | support 16-bit true color graphical menu interface and mouse operation |
| Resolution | 800*600;1024*768;1280*720; 1280*1024;1440*900;1920*1080 |
| Display Split | 1/4 |
| OSD | Channel title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording | |
| Video Compression | H.264 |
| Audio Compression | G.711a |
| Record Mode | Manual, Auto(Regular(Continuous), MD, Alarm), Off |
| Record Interval | 1~120min (default: 60 min), Pre-record: 1~30sec |
| Alarm | |
| Alarm input | N/A |
| Alarm output | N/A |
| Trigger Events | Recording, Alarm, Video Push, Email, Buzzer |
| Video Detection | Motion Detect, Video Blind, Video Loss |
| Abnormal | HDD loss, Low HDD capacity, Net disconnection, IP conflict, HDD error |
| Playback & Backup | |
| Sync Playback | 4*1080P/25fps; 4*720P/25fps; |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second) |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full |
| screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device / Network |
| Network | |
| Ethernet | RJ-45 port (10/100/1000M) |
| Network Functions | HTTP, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS, FTP, RTSP, SMTP, |
| Mobile Phone | Camviews (IPhone, IPad, Android) |
| Max.User Access | 10 users |
| Storage | |
| Internal HDD | 2 SATA ports, up to 8TB |
| Auxiliary Interface | |
| USB Interface | 2 ports, USB2.0 |
| RS485 | 1 port, For PTZ control |
| General | |
| Power Supply | DC12V/4A |
| Power Consumption | 24W(without HDD) |
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa |
| Dimension(W*D*H) | 1U, 335*259*55(mm) |
| Weight | 2.0-2.5kg(without HDD) |
