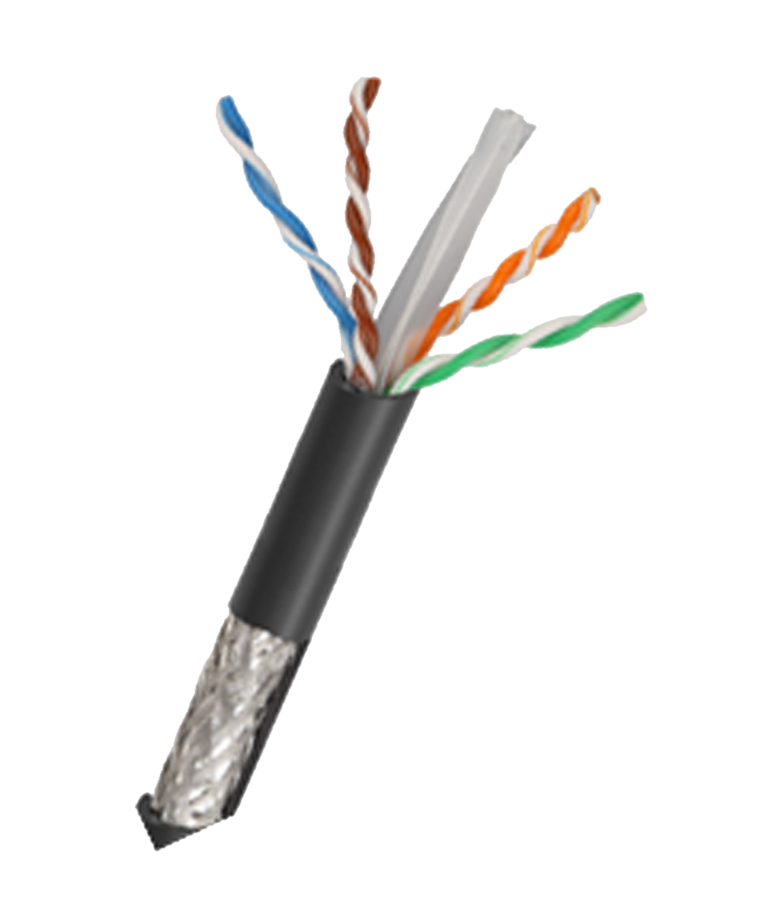

UL-C6-SFTP-CCA/100m

  • Copper Clad Aluminum LAN cable
  • 23 AWG, 0.17mm HDPE
  • 4 pairs over PE Cross
  • 6.7mm PVC
  • Outdoor use
Description

Description

Technical Specification

MODEL UL-C6-SFTP-CCA/100m
Conductor 0.56mm, 15% CCA
Insulation 0.193mm HDPE
No. of Pairs 4 pairs
Color Cord White/Blue
White/Orange
White/Green
White/Brown
PE Cross 4.4 x 4.4mm HDPE
Shielding Spiral wrap Aluminum Mylar
Braiding Aluminum Magnesium Alloy
Rip cord Nylon
Jacket 6.7mm LDPE
Packaging 100m reel/box
APPLICATION Computer Network Cabling Project
Broadband Network Communication
Digital ISDN Network and ATM 155Mbps Network
Ethernet Network
Audio and Data Transmission
ELECTRICAL SPECIFICATION
Conductor Resistance 93.8Ω/km Maximum @ 20° C
Insulation Resistance 5,000MΩ/km Minimum @ 20°C
Temperature range -20°C to 60°C
Spark test 1,000V DC / 1 min; No Breakdown
Volatage rating 30V
Velocity of Propagation 69%
